Cocoa: What's the difference between the frame and the bounds?
|
11:49 PM |
No comments |
Cocoa: What's the difference between the frame and the bounds?
UIView and its subclasses all have the properties frame and bounds. What's the difference? (Please don't quote the Apple docs ? I've already read them and did not understand.)
Answer by shek for Cocoa: What's the difference between the frame and the bounds?
The bounds of an UIView is the rectangle, expressed as a location (x,y) and size (width,height) relative to its own coordinate system (0,0).
The frame of an UIView is the rectangle, expressed as a location (x,y) and size (width,height) relative to the superview it is contained within.
So, imagine a view that has a size of 100x100 (width x height) positioned at 25,25 (x,y) of its superview. The following code prints out this view's bounds and frame:
// This method is in the view controller of the superview - (void)viewDidLoad { [super viewDidLoad]; NSLog(@"bounds.origin.x: %f", label.bounds.origin.x); NSLog(@"bounds.origin.y: %f", label.bounds.origin.y); NSLog(@"bounds.size.width: %f", label.bounds.size.width); NSLog(@"bounds.size.height: %f", label.bounds.size.height); NSLog(@"frame.origin.x: %f", label.frame.origin.x); NSLog(@"frame.origin.y: %f", label.frame.origin.y); NSLog(@"frame.size.width: %f", label.frame.size.width); NSLog(@"frame.size.height: %f", label.frame.size.height); } And the output of this code is:
bounds.origin.x: 0 bounds.origin.y: 0 bounds.size.width: 100 bounds.size.height: 100 frame.origin.x: 25 frame.origin.y: 25 frame.size.width: 100 frame.size.height: 100 So, we can see that in both cases, the width and the height of the view is the same regardless of whether we are looking at the bounds or frame. What is different is the x,y positioning of the view. In the case of the bounds, the x and y coordinates are at 0,0 as these coordinates are relative to the view itself. However, the frame x and y coordinates are relative to the position of the view within the parent view (which earlier we said was at 25,25).
There is also a great presentation that covers UIViews. See slides 1-20 which not only explain the difference between frames and bounds but also show visual examples.
Answer by jorik for Cocoa: What's the difference between the frame and the bounds?
The frame is the rectangle that defines the UIView with respect to its superview.
The bounds rect is the range of values that define that NSView's coordinate system.
i.e. anything in this rectangle will actually display in the UIView.
Answer by tristan for Cocoa: What's the difference between the frame and the bounds?
try to run the code below
- (void)viewDidLoad { [super viewDidLoad]; UIWindow *w = [[UIApplication sharedApplication] keyWindow]; UIView *v = [w.subviews objectAtIndex:0]; NSLog(@"%@", NSStringFromCGRect(v.frame)); NSLog(@"%@", NSStringFromCGRect(v.bounds)); } the output of this code is:
case device orientation is Portrait
{{0, 0}, {768, 1024}} {{0, 0}, {768, 1024}} case device orientation is Landscape
{{0, 0}, {768, 1024}} {{0, 0}, {1024, 768}} obviously, you can see the difference between frame and bounds
Answer by umairhhhs for Cocoa: What's the difference between the frame and the bounds?
These are some links that can be helpful hopefully they will
http://ashfurrow.com/blog/you-probably-dont-understand-frames-and-bounds
Answer by Suragch for Cocoa: What's the difference between the frame and the bounds?
To help me remember frame, I think of a picture frame on a wall. The picture frame is like the border of a view. I can hang the picture anywhere I want on the wall. In the same way, I can put a view anywhere I want inside a parent view (also called a superview). The parent view is like the wall. The origin of the coordinate system in iOS is the top left. We can put our view at the origin of the superview by setting the view frame's x-y coordinates to (0, 0), which is like hanging our picture in the very top left corner of the wall. To move it right, increase x, to move it down increase y.
To help me remember bounds, I think of a basketball court where sometimes the basketball gets knocked out of bounds. You are dribbling the ball all over the basketball court, but you don't really care where the court itself is. It could be in a gym, or outside at a high school, or in front of your house. It doesn't matter. You just want to play basketball. In the same way, the coordinate system for a view's bounds only cares about the view itself. It doesn't know anything about where the view is located in the parent view. The bounds' origin (point (0, 0) by default) is the top left corner of the view. Any subviews that this view has are laid out in relation to this point. It is like taking the basketball to the front left corner of the court.
Now the confusion comes when you try to compare frame and bounds. It actually isn't as bad as it seems at first, though. Let's use some pictures to help us understand.
Frame vs Bounds

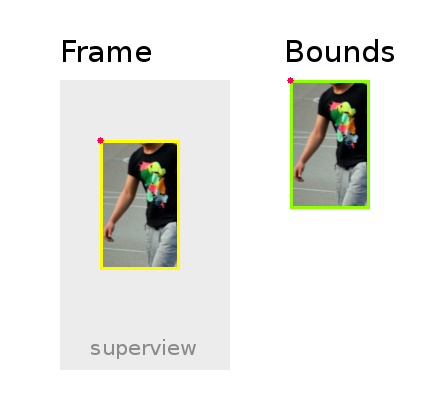

In the first picture on the left we have a view that is located at the top left of its parent view. The yellow rectangle represents the view's frame. On the right we see the view again but this time the parent view is not shown. That's because the bounds don't know about the parent view. The green rectangle represents the view's bounds. The red dot in both images represents the origin of the frame or bounds.
Frame origin = (0, 0) width = 80 height = 130 Bounds origin = (0, 0) width = 80 height = 130
So the frame and bounds were exactly the same in that picture. Let's look at an example where they are different.
Frame origin = (40, 60) // That is, x=40 and y=60 width = 80 height = 130 Bounds origin = (0, 0) width = 80 height = 130
So you can see that changing the x-y coordinates of the frame moves it in the parent view. But the content of the view itself still looks exactly the same. The bounds have no idea that anything is different.
Up to now the width and height of both the frame and the bounds have been exactly the same. That isn't always true, though. Look what happens if we rotate the view 20 degrees clockwise.
Frame origin = (20, 52) // These are just rough estimates. width = 118 height = 187 Bounds origin = (0, 0) width = 80 height = 130
You can see that the bounds are still the same. They still don't know anything has happened! The frame values have all changed, though.
Now it is a little easier to see the difference between frame and bounds, isn't it? The article You Probably Don't Understand frames and bounds defines a view frame as
...the smallest bounding box of that view with respect to it?s parents coordinate system, including any transformations applied to that view.
It is important to note that if you transform a view, then the frame becomes undefined. That means if you rotate, scale or do some other transformation then you shouldn't use the frame values anymore. You can still use the bounds values, though. The Apple docs warn:
Important: If a view?s
transformproperty does not contain the identity transform, the frame of that view is undefined and so are the results of its autoresizing behaviors.
Rather unfortunate about the autoresizing.... There is something you can do, though.
When modifying the
transformproperty of your view, all transformations are performed relative to the center point of the view.
So if you do need to move a view around in the parent after a transformation has been done, you can do it by changing the view.center coordinates. Like frame, center uses the coordinate system of the parent view.
Ok, let's get rid of our rotation and focus on the bounds. So far the bounds origin has always stayed at (0, 0). It doesn't have to, though. What if our view has a large subview that is too big to display all at once? We'll make it a UIImageView with a large image. Here is our second picture from above again, but this time we can what the whole content of our view's subview would look like.
Frame origin = (40, 60) width = 80 height = 130 Bounds origin = (0, 0) width = 80 height = 130
Only the top left corner of the image can fit inside the view's bounds. Now look what happens if we change the bounds' origin coordinates.
Frame origin = (40, 60) width = 80 height = 130 Bounds origin = (280, 70) width = 80 height = 130
The frame hasn't moved in the superview but the content inside the frame has changed because the origin of the bounds rectangle starts at a different part of the view. This is the whole idea behind a UIScrollView and it's subclasses (for example, a UITableView). See Understanding UIScrollView for more explanation.
When to use frame and when to use bounds
Since frame relates a view's location in its parent view, you use it when you are making outward changes, like changing its width or finding the distance between the view and the top of its parent view.
Use the bounds when you are making inward changes, like drawing things or arranging subviews within the view. Also use the bounds to get the size of the view if you have done some transfomation on it.
Articles for further research:
Apple docs
Related StackOverflow questions
- UIView frame, bounds and center
- UIView's frame, bounds, center, origin, when to use what?
- "Incorrect" frame / window size after re-orientation in iPhone
Other resources
- You Probably Don't Understand frames and bounds
- iOS Fundamentals: Frames, Bounds, and CGGeometry
- CS193p Lecture 5 - Views, Drawing, Animation
Practice yourself
In addition to reading the above articles, it helps me a lot to make a test app. You might want to try to do something similar. (I got the idea from this video course but unfortunately it isn't free.)
Here is the code for your reference:
import UIKit class ViewController: UIViewController { @IBOutlet weak var myView: UIView! // Labels @IBOutlet weak var frameX: UILabel! @IBOutlet weak var frameY: UILabel! @IBOutlet weak var frameWidth: UILabel! @IBOutlet weak var frameHeight: UILabel! @IBOutlet weak var boundsX: UILabel! @IBOutlet weak var boundsY: UILabel! @IBOutlet weak var boundsWidth: UILabel! @IBOutlet weak var boundsHeight: UILabel! @IBOutlet weak var centerX: UILabel! @IBOutlet weak var centerY: UILabel! @IBOutlet weak var rotation: UILabel! // Sliders @IBOutlet weak var frameXSlider: UISlider! @IBOutlet weak var frameYSlider: UISlider! @IBOutlet weak var frameWidthSlider: UISlider! @IBOutlet weak var frameHeightSlider: UISlider! @IBOutlet weak var boundsXSlider: UISlider! @IBOutlet weak var boundsYSlider: UISlider! @IBOutlet weak var boundsWidthSlider: UISlider! @IBOutlet weak var boundsHeightSlider: UISlider! @IBOutlet weak var centerXSlider: UISlider! @IBOutlet weak var centerYSlider: UISlider! @IBOutlet weak var rotationSlider: UISlider! // Slider actions @IBAction func frameXSliderChanged(sender: AnyObject) { myView.frame.origin.x = CGFloat(frameXSlider.value) updateLabels() } @IBAction func frameYSliderChanged(sender: AnyObject) { myView.frame.origin.y = CGFloat(frameYSlider.value) updateLabels() } @IBAction func frameWidthSliderChanged(sender: AnyObject) { myView.frame.size.width = CGFloat(frameWidthSlider.value) updateLabels() } @IBAction func frameHeightSliderChanged(sender: AnyObject) { myView.frame.size.height = CGFloat(frameHeightSlider.value) updateLabels() } @IBAction func boundsXSliderChanged(sender: AnyObject) { myView.bounds.origin.x = CGFloat(boundsXSlider.value) updateLabels() } @IBAction func boundsYSliderChanged(sender: AnyObject) { myView.bounds.origin.y = CGFloat(boundsYSlider.value) updateLabels() } @IBAction func boundsWidthSliderChanged(sender: AnyObject) { myView.bounds.size.width = CGFloat(boundsWidthSlider.value) updateLabels() } @IBAction func boundsHeightSliderChanged(sender: AnyObject) { myView.bounds.size.height = CGFloat(boundsHeightSlider.value) updateLabels() } @IBAction func centerXSliderChanged(sender: AnyObject) { myView.center.x = CGFloat(centerXSlider.value) updateLabels() } @IBAction func centerYSliderChanged(sender: AnyObject) { myView.center.y = CGFloat(centerYSlider.value) updateLabels() } @IBAction func rotationSliderChanged(sender: AnyObject) { let rotation = CGAffineTransformMakeRotation(CGFloat(rotationSlider.value)) myView.transform = rotation updateLabels() } private func updateLabels() { frameX.text = "frame x = \(Int(myView.frame.origin.x))" frameY.text = "frame y = \(Int(myView.frame.origin.y))" frameWidth.text = "frame width = \(Int(myView.frame.width))" frameHeight.text = "frame height = \(Int(myView.frame.height))" boundsX.text = "bounds x = \(Int(myView.bounds.origin.x))" boundsY.text = "bounds y = \(Int(myView.bounds.origin.y))" boundsWidth.text = "bounds width = \(Int(myView.bounds.width))" boundsHeight.text = "bounds height = \(Int(myView.bounds.height))" centerX.text = "center x = \(Int(myView.center.x))" centerY.text = "center y = \(Int(myView.center.y))" rotation.text = "rotation = \((rotationSlider.value))" } } Answer by m.eldehairy for Cocoa: What's the difference between the frame and the bounds?
frame is the origin (top left corner) and size of the view in its super view's coordinate system , this means that you translate the view in its super view by changing the frame origin , bounds on the other hand is the size and origin in its own coordinate system , so by default the bounds origin is (0,0).
most of the time the frame and bounds are congruent , but if you have a view of frame ((140,65),(200,250)) and bounds ((0,0),(200,250))for example and the view was tilted so that it stands on its bottom right corner , then the bounds will still be ((0,0),(200,250)) , but the frame is not .
the frame will be the smallest rectangle that encapsulates/surrounds the view , so the frame (as in the photo) will be ((140,65),(320,320)).
another difference is for example if you have a superView whose bounds is ((0,0),(200,200)) and this superView has a subView whose frame is ((20,20),(100,100)) and you changed the superView bounds to ((20,20),(200,200)) , then the subView frame will be ((0,0),(100,100)) , because then the subView's origin coincides with the superView coordinate system origin.
i hope this helps somebody.
Answer by RAGHUNATH for Cocoa: What's the difference between the frame and the bounds?
Frame its relative to its SuperView whereas Bounds relative to its NSView.
Example:X=40,Y=60.Also contains 3 Views.This Diagram shows you clear idea.
